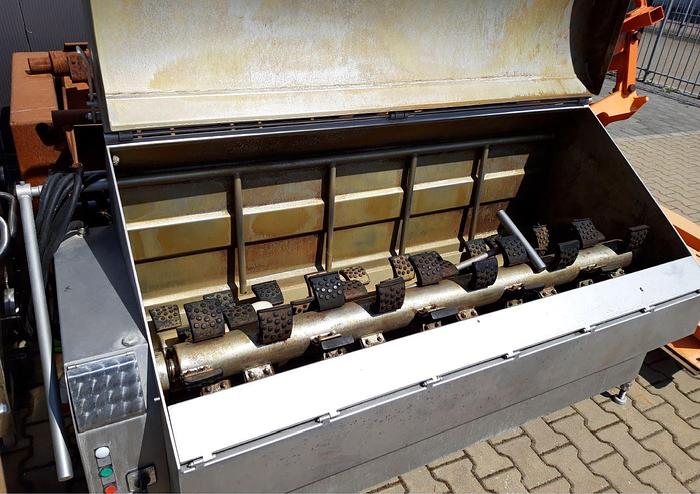

Pig Scalding-Dehairing Unit

Pig equipment used for the dehairing of pig

General information

• For pork up to 250kg
• All system parts made of stainless steel
• Setting and hair removal time approx. 3 min
• Double roller system for ideal turning and clean depilation of the pig (can be turned for easy cleaning of the investment).
• Capacity approx.: 15 hph.

Dimensions

• Width : Approx. 2.30 m
• Depth : Approx. 1.00 m
• Inside length : 1.90 m
• Water filling volume : Approx. 180 l

Weight

• Total weight without medium : Approx. 580 kg
• Working weight : Max 830 kg
• Feed weight (Max carcass weight) : 250 kg

Power supply

• Drive power : Approx. 2.2 kW
• Heating power : 13.5 kW
• Supply voltage : 230 V / 32 A
• Control voltage : 24 V AC

Energy supply pneumatic ejection and / or pneumatic lid

• Compressed air : Pressure average
• Air consumption : <500 l/h
• Supply pressure : Approx. 5 bar

Environmental conditions

• Permissible ambient temperature : 5°C to 45°C
• Noise emission : <80 dB (A)
